CONCRETON^TM

Self Compacting High Performance Cast
Hyper ionized concrete panel technology

Proprietary mix of custom admixtures, ionized cements, and optimized particle
packing technology. One inch of CONCRETON replaces approx. 8 inches of
conventional reinforced concrete.

Typical Performance Specifications :

Length:

up to 10 feet ≈ 3 meters and could be extended

Width:

16 – 24 inches ≈ 40 – 60 cm

17,000 – 19,000 PSI ≈ 120 – 130 MPa

Flex strength

2,700 – 3,600 PSI ≈ 19 – 25 MPa

Freeze thaw cycles

400 (saltwater)

Steel microfiber

Anodized

Water tightness

> 20 atmospheres

≈ 160 lbs/ft³ ≈ 2562.8 kg/m³

Density

Set time

12–14 hours at room temperature

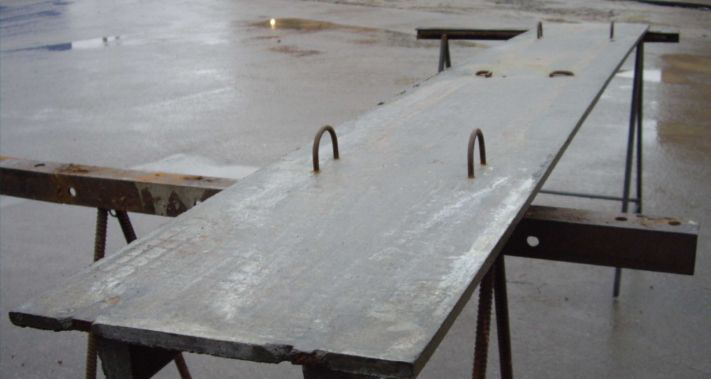

Typical highway bridge unit ≈ 92 kg.

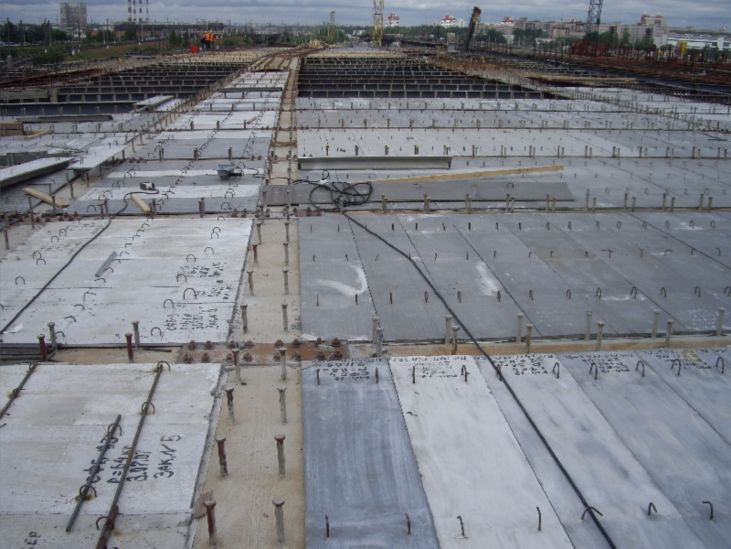

installed bridge under-layment, prior to paving
